Flow Restrictors, Adjustable Needle Valves

Flow Restrictors, Adjustable Needle Valves

Click to enlarge

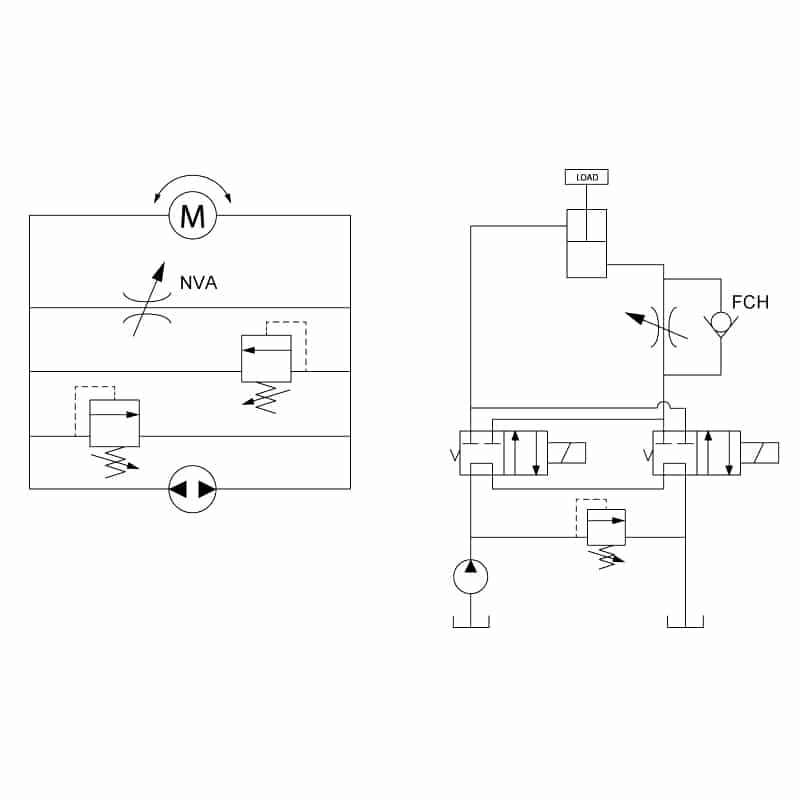

Typical Schematic

Typical application for the NVA valve is to meter flow giving speed or full bypass control of a fluid motor. Typical application for the FCH valve is to meter flow in one direction while allowing free flow in the opposite direction.

  Code LPM BAR Size Datasheet .STP .DXF
Adjustable Flow Control Valve, Needle Type D-MANVA 23 240 07
Adj. Needle Flow Control
Adjustable Flow Control Valve, Needle Type D-PBNVA 23 240 08
Adj. Needle Flow Control
Adjustable Flow Control Valve, Needle Type, Fine Adjust D-PBNVB 12 240 08
Adj. Needle Flow Control Fine Adj.
Adjustable Flow Control Valve, Needle Type, Fine Adjust D-DENVA 38 240 10
Adj. Needle Flow Control Fine Adj.
Needle Type, Standard Adjust D-DENVB 57 240 10
Adj. Needle Flow Control Standard Adj.
Adjustable Flow Control Valve, Needle Type D-HTNVA 133 345 12
Adj. Needle Flow Control
Adjustable Flow Control Valve, Needle Type, D-SJNVA 151 240 16
Adj. Needle Flow Control
Adjustable Needle Flow Control Valve, Free Reverse Flow D-DEFCH 45 240 10
Adj. Needle Flow Control Free Rev. Flow
