Pressure Compensated Flow Regulator Valves

Pressure Compensated Flow Regulator Valves

Click to enlarge

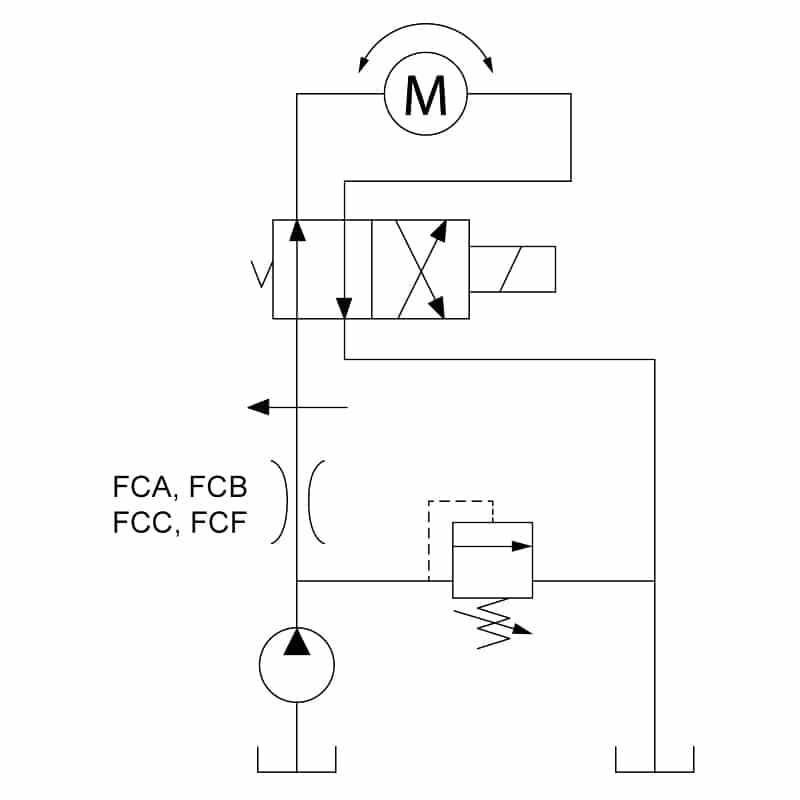

Typical Schematic

Typical application for the FCA, FCB, FCC, and the FCF valves is for motor speed control.

  Code LPM BAR Size Datasheet .STP .DXF
Adjustable Flow Control Valve, Pressure Compensated D-MAFCA 11 210 07
Adj. Flow Control
Pressure Comp.

Adjustable Flow Control Valve, Pressure Compensated D-PBFCA 15 240 08
Adj. Flow Control
Pressure Comp.

Adjustable Flow Control Valve, Pressure Compensated D-DEFCA 30 240 10
Adj. Flow Control
Pressure Comp.

Adjustable Flow Control Valve, Pressure Compensated D-DEFCC 30 240 10
Adj. Flow Control
Pressure Comp.

Adjustable Flow Control Valve, Pressure Compensated D-HTFCA 76 345 12
Adj. Flow Control
Pressure Comp.

Adjustable Flow Control Valve, Pressure Compensated D-SJFCA 95 240 16
Adj. Flow Control
Pressure Comp.

Fixed Flow Control Valve, Pressure Compensated D-DEFCB 30 240 10
Fixed Flow Control
Pressure Comp.

Fixed Flow Control Valve, Pressure Compensated D-DEFCF 30 240 10
Fixed Flow Control
Pressure Comp.




Warning: The specifications/application data shown in our catalogs and data sheets are intended only as a general guide for the product described (herein). Any specific application should not be undertaken without independent study, evaluation, and testing for suitability.
