2 Way 2 Position Manual Valves

2 Way 2 Position Manual Valve Typical Schematic

Click to enlarge

Typical Schematic

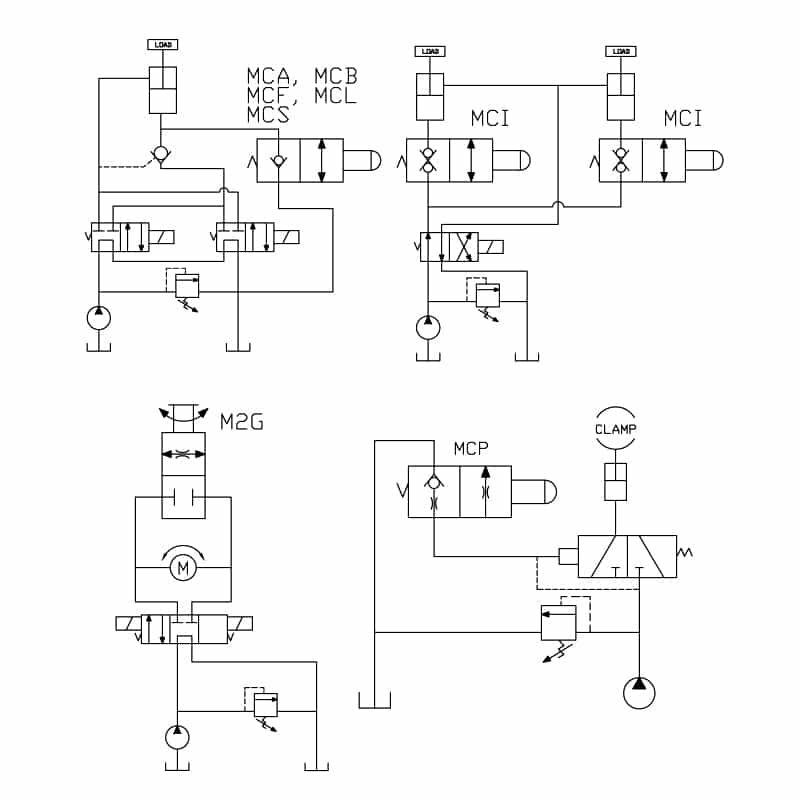

Typical application for MCA, MCB, MCF, MCL, and MCS valves is an emergency lowering device. Typical application for the MCI valve is a selector circuit when load holding is required in both directions. Typical application for the M2G valve is adjustable speed control or full bypass of fluid motor. Typical application for the MCP valve is a pilot dump valve.

  Code LPM BAR Size Datasheet .STP .DXF
2 Way 2 Position Manual Valve D-PBMCA 45 240 18
2 Way NC
Pull Type

2 Way 2 Position Manual Valve D-DEMCA 57 240 10
2 Way NC
Pull Type

2 Way 2 Position Manual Valve D-DEMCF 75 100 10
2 Way NC
Pull Type
Soft Seat

2 Way 2 Position Manual Valve D-DEMCS 76 240 10
2 Way NC
Pull Type
Corrosion Resistant

2 Way 2 Position Manual Valve withDetent D-DEMCB 76 240 10
2 Way NC
Pull Type
Detent

2 Way 2 Position Manual Valve D-PBMCI 57 240 10
2 Way NC
Push Type

2 Way 2 Position Manual Valve with Lever D-PBMCL 57 240 10
2 Way NC
Pull Type

2 Way 2 Position Manual Valve with Lever D-DEMCL 57 240 10
2 Way NC
Pull Type

2 Way 2 Position Manual Rotary Spool Valve D-DEM2G 76 240 10
2 Way NC
Manual Rotary
Spool

2 Way 2 Position Manual Valve D-HBMCP 4 275 08
2 Way NC
Push Type
