Direct Acting Check Valves

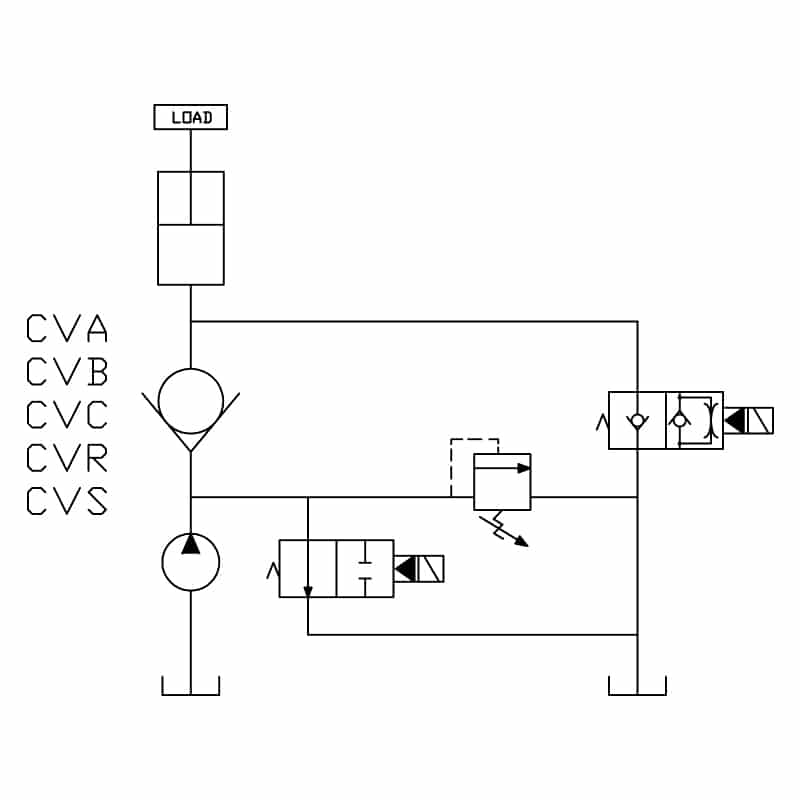

Typical application for the CVA, CVB, CVC, CVR, and CVS valves is load holding in a lift, check, or dump circuit.

 CodeLPMBARSizeDatasheet.STP.DXF
Direct Acting Hydraulic Check ValveD-MACVA1924007
Direct Acting Check
Poppet
Direct Acting Hydraulic Check ValveD-MACVS1010307
Direct Acting Check,
Soft Seat, Poppet
Direct Acting Hydraulic Check ValveD-HBCVA3830008
Direct Acting Check
Poppet
Direct Acting Hydraulic Check ValveD-PBCVS2024008
Direct Acting Check,
Soft Seat, Poppet
Direct Acting Hydraulic Check ValveD-DECVA5724010
Direct Acting Check
Poppet
Direct Acting Hydraulic Check ValveD-DECVS386910
Direct Acting Check,
Soft Seat, Poppet
Direct Acting Hydraulic Check ValveD-HECVA5734510
Direct Acting Check
Poppet
Direct Acting Hydraulic Check ValveD-HTCVA13234512
Direct Acting Check
Poppet
Direct Acting Hydraulic Check ValveD-SJCVA15024016
Direct Acting Check
Poppet
Direct Acting Hydraulic Check ValveD-DECVB3824010
Direct Acting Check
Poppet
Direct Acting Hydraulic Check ValveD-PBCVC3824008
Direct Acting Check,
Guided Ball
Direct Acting Hydraulic Check ValveD-DECVC3024010
Direct Acting Check,
Guided Ball
Direct Acting Hydraulic Check Valve D-DECVR5724010
Reverse Flow Check,
Poppet
Direct Acting Hydraulic Check Valve D-HTCVR13234512
Reverse Flow Check,
Poppet
