Pilot to Open Check Valves

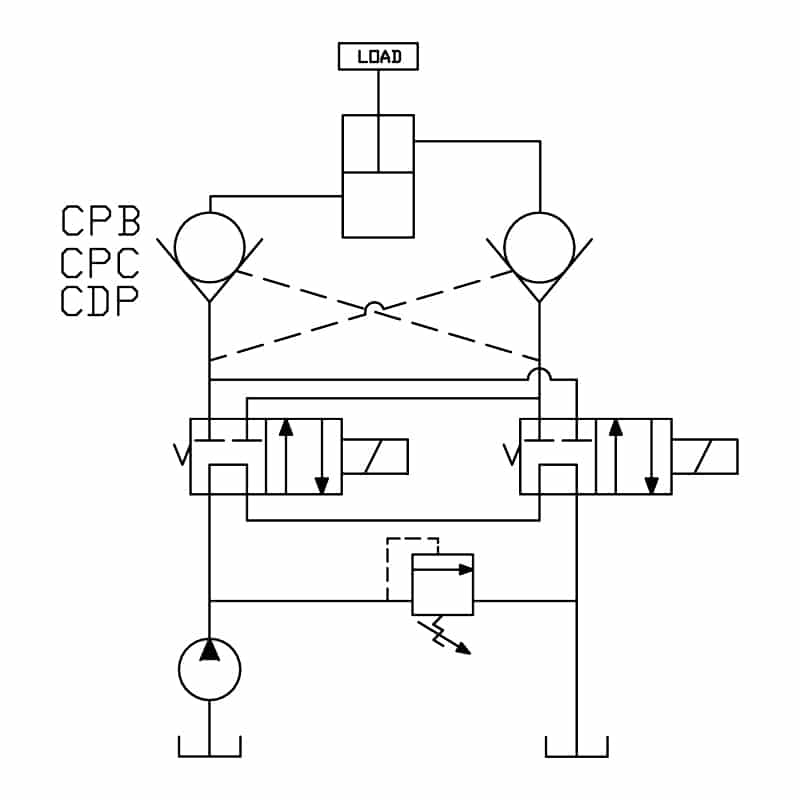

Typical application for the CPB and CPC valves is load holding as shown.

 CodeLPMBARSizeDatasheet.STP.DXF
Pilot to Open Check ValveD-PPCPB2324008
Pilot to Open Check
(pilot ratio 4:1)
Pilot to Open Check ValveD-DFCPB3024010
Pilot to Open Check
(pilot ratio 4:1)
Pilot to Open Check ValveD-DFCPC3824010
Pilot to Open Check
(pilot ratio 2:1)
