Differential Relief Valves

Differential Relief Valves

Click to enlarge

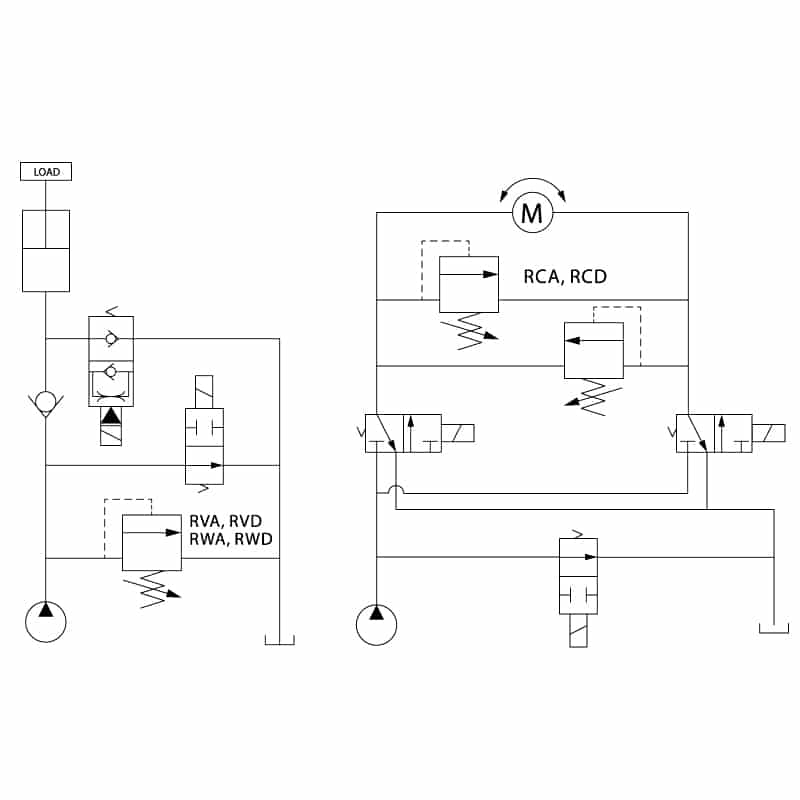

Typical Schematic

Typical application for the RVA, RVD, RWA, RWD valves is to protect pump and system. Typical application for the RCA and RCD valves is cross over relief to protect motor in both directions, where lowest possible price is desired.

  Code LPM BAR Size Datasheet .STP .DXF
Differential Area Relief Valves D-PBRVD 30 240 08
Differential Area
Relief Valve

Differential Area Relief Valves D-PBRWD 30 240 08
Differential Area
Relief Valve

Differential Area Relief Valves D-DERVD 57 275 10
Differential Area
Relief Valve

Differential Area Relief Valves D-DERWD 57 275 10
Differential Area
Relief Valve

Differential Area Relief Valves D-DERCD 57 240 10
Differential Area
Relief Valve

Differential Area Relief Valves D-HERVD 150 350 10
Differential Area
Relief Valve




Warning: The specifications/application data shown in our catalogs and data sheets are intended only as a general guide for the product described (herein). Any specific application should not be undertaken without independent study, evaluation, and testing for suitability.
