Direct Acting Relief Valves

Direct Acting Relief Valves

Click to enlarge

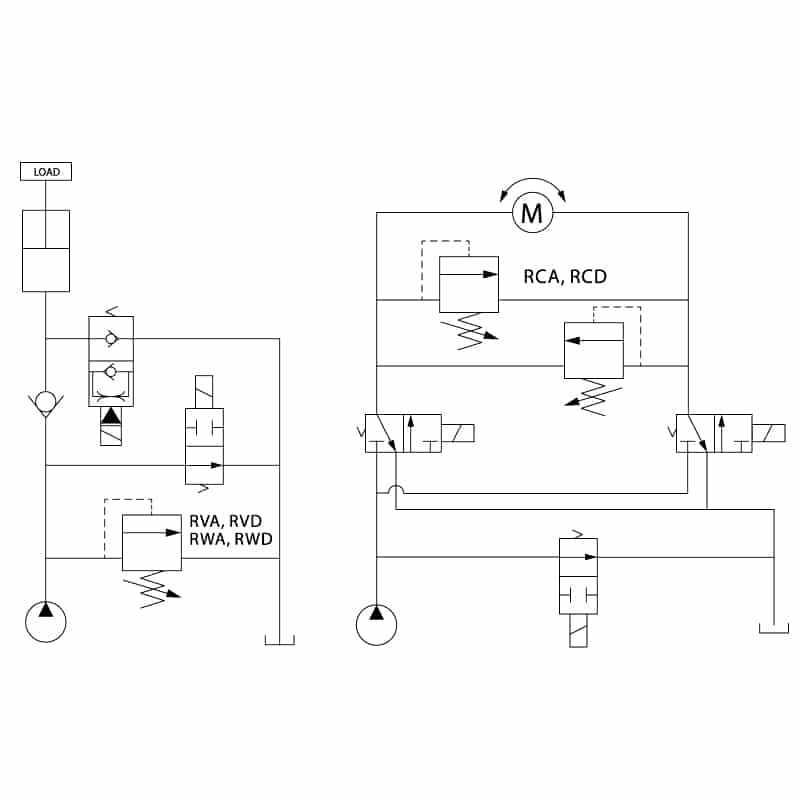

Typical Schematic

Typical application for the RVA, RVD, RWA, RWD valves is to protect pump and system. Typical application for the RCA and RCD valves is cross over relief to protect motor in both directions, where lowest possible price is desired.

  Code LPM BAR Size Datasheet .STP .DXF
Direct Acting Relief Valves D-MARVA 19 210 07
Direct Acting
Relief

Direct Acting Relief Valves D-PBRVA 23 240 08
Direct Acting
Relief

Direct Acting Relief Valves D-PBRWA 23 240 08
Direct Acting
Relief

Direct Acting Relief Valves D-DERVA 30 275 10
Direct Acting
Relief

Direct Acting Relief Valves D-DERWA 30 275 10
Direct Acting
Relief

Direct Acting Relief Valves D-DERCA 45 240 10
Direct Acting
Relief




Warning: The specifications/application data shown in our catalogs and data sheets are intended only as a general guide for the product described (herein). Any specific application should not be undertaken without independent study, evaluation, and testing for suitability.
