Pressure Reducing/Relieving Valves

Pressure Reducing/Relieving Valves

Click to enlarge

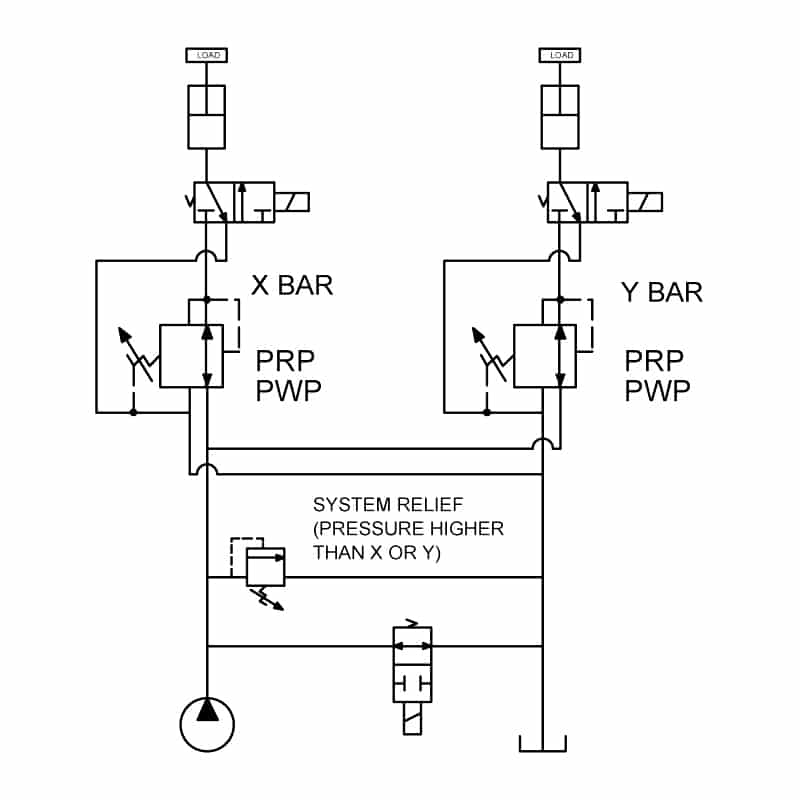

Typical Schematic

Typical application for the PRP and PWP valves is multi-system pressure setting. System relief pressure must be greater then reduce pressure setting.

  Code LPM BAR Size Datasheet .STP .DXF
Pilot Operated, Pressure Reducing, Relieving Valve D-DFPRP 38 210 10
Pilot Operated
Pres. Reducing
Relieving

Pilot Operated Pressure Reducing, Relieving Valve D-DFPWP 38 275 10
Pilot Operated
Pres. Reducing
Relieving

Pilot Operated, Pressure Reducing, Relieving Valve D-SKPRP 76 210 16
Pilot Operated
Pres. Reducing
Relieving




Warning: The specifications/application data shown in our catalogs and data sheets are intended only as a general guide for the product described (herein). Any specific application should not be undertaken without independent study, evaluation, and testing for suitability.
