Shut Down Valve

Shut Down Valve

Click to enlarge

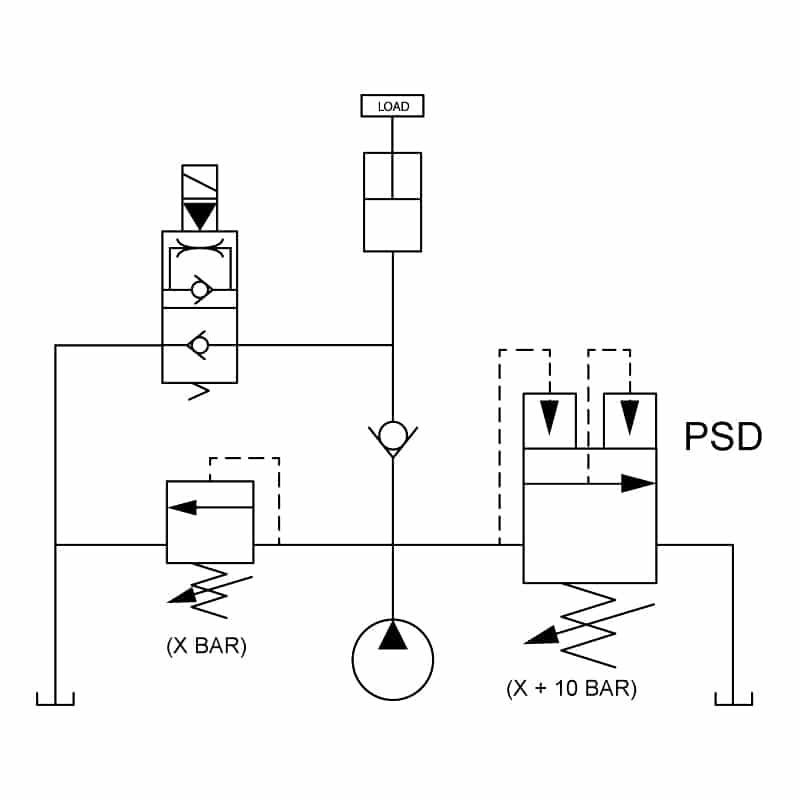

Typical Schematic

Typical application for the PSD shut down valve is a system protector, like a relief valve, but once open it will not reseat until the pressure at port 2 is drained off.
Not to be used as a load holding device.

  Code LPM BAR Size Datasheet .STP .DXF
Pressure Shut Down Valve D-DEPSD 57 310 10
Pressure Shut Down



Warning: The specifications/application data shown in our catalogs and data sheets are intended only as a general guide for the product described (herein). Any specific application should not be undertaken without independent study, evaluation, and testing for suitability.
