Proportional 2 Way Non-Compensated Valves

Proportional 2 Way Non-Compensated Valve

Click to enlarge

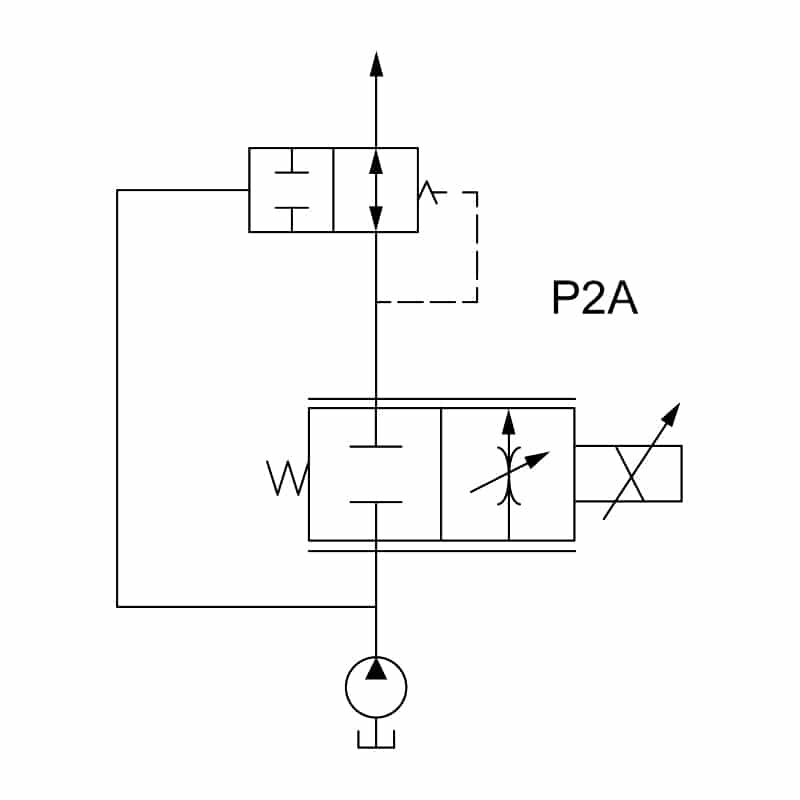

Typical Schematic

Typical application for the P2A proportional 2 way non-compensated valve is for speed control.

  Code LPM BAR Size Datasheet .STP .DXF
2 Way, Normally Closed Poppet, Proportional Flow Control Valve T-EBP2A 25 245 8
2 Way, N.C.
2 Way, Normally Closed Poppet, Proportional Flow Control Valve T-EEP2A-A 15 245 10
2 Way, N.C.
2 Way, Normally Closed Poppet, Proportional Flow Control Valve T-EEP2A-B 30 245 10
2 Way, N.C.
2 Way, Normally Closed Poppet, Proportional Flow Control Valve T-EEP2A-C 45 245 10
2 Way, N.C.
hydraulic-symbol-P2G-A-B-C T-EEP2G-A 22 245 10
2 Way, N.C.
hydraulic-symbol-P2G-A-B-C T-EEP2G-B
50 245 10
2 Way, N.C.
hydraulic-symbol-P2G-A-B-C T-EEP2G-C
50 245 10
2 Way, N.C.
EE-P2H_symbol T-EEP2H 38 245 10
2 Way, N.O.
2 Way, Normally Closed, Proportional Flow Control Valve T-ETP2A-A 65 245 12
2 Way, N.C.
2 Way, Normally Closed, Proportional Flow Control Valve T-ETP2A-B 85 245 12
2 Way, N.C.
2 Way, Normally Closed, Proportional Flow Control Valve T-ETP2A-C 110 245 12
2 Way, N.C.



Warning: The specifications/application data shown in our catalogs and data sheets are intended only as a general guide for the product described (herein). Any specific application should not be undertaken without independent study, evaluation, and testing for suitabil
