Proportional Pressure Reducing Valves

Proportional Pressure Reducing Valve

Click to enlarge

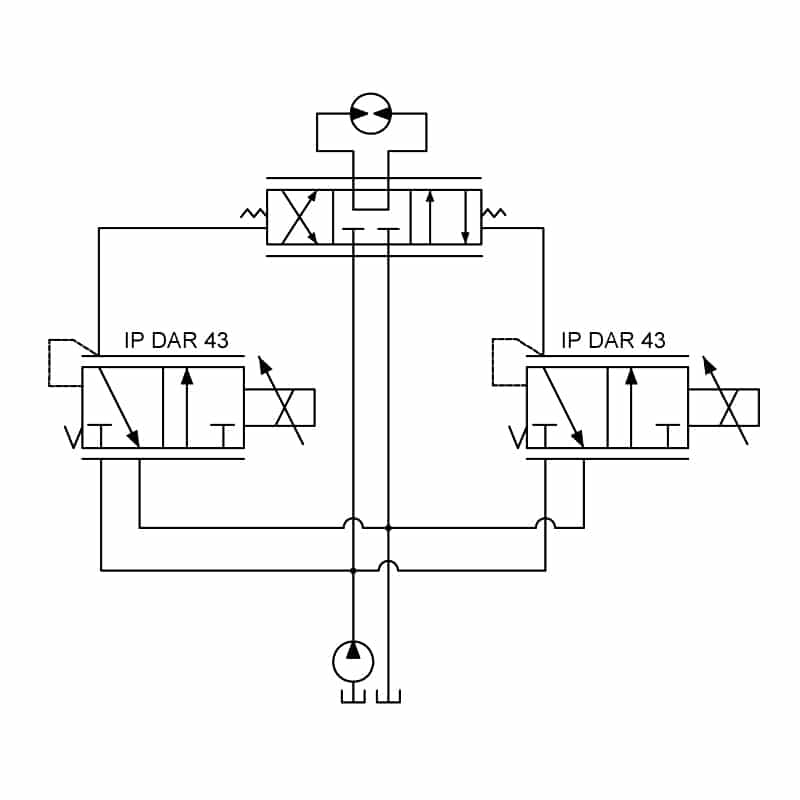

Typical Schematic

Typical application for the EC-PRV and IP-DAR proportional pressure reducing valves is for a soft shift and flow control, used in “Powershift” transmissions, four wheel braking modulation systems, and soft shift PTO engagement systems.

  Code LPM BAR Size Datasheet .STP .DXF
EG-PRZ Symbol D-ECPRV 8 35 10
3 Way, 2 Pos.
3 Way, Proportional Pressure Reducing Control Valve D-EGPRZ 30 31 10
3 Way
Proportional Pressure Reducing Control Valve D-ESPRZ 114 31 10
3 Way
Direct Acting Proportional, Pressure Reducing/Relieving Valve, Slip-in Type D-IPDAR43C-L 3.8 50 NA
Direct Acting
Direct Acting Proportional, Pressure Reducing/Relieving Valve, Slip-in Type D-IPDAR43C-H 3.8 350 NA
Direct Acting
Pilot Operated Proportional, Pressure Reducing/Relieving Valve, Slip-in Type D-IPPRZ59 30 50 NA
Pilot Operated



Warning: The specifications/application data shown in our catalogs and data sheets are intended only as a general guide for the product described (herein). Any specific application should not be undertaken without independent study, evaluation, and testing for suitability.
