2W2P Normally Closed Bi-Directional Valves

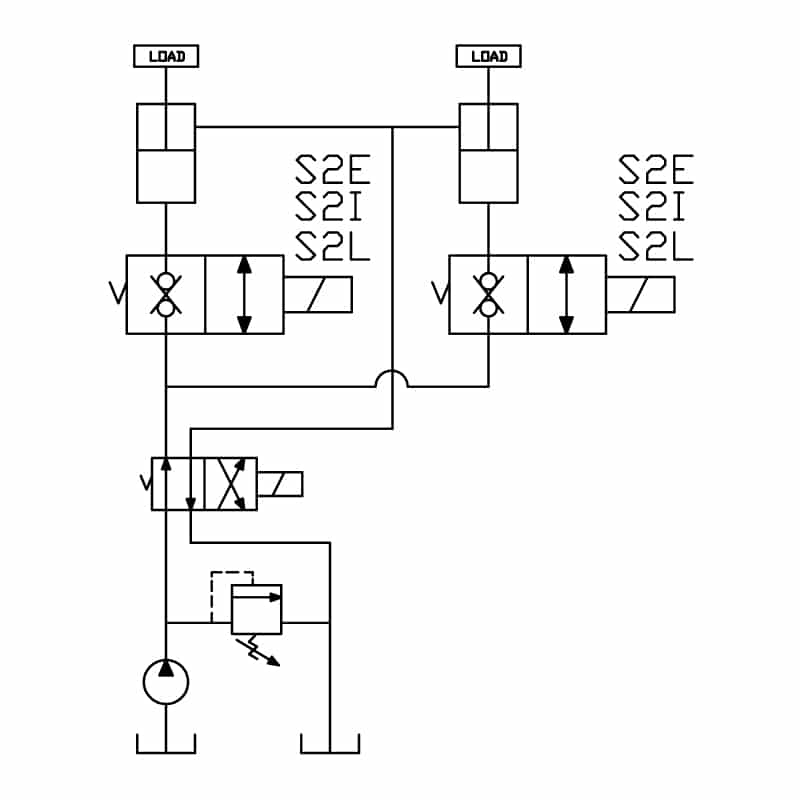

2W2P Normally Closed Bi-Directional Valves Typical Schematic

Click to enlarge

Typical Schematic

Typical application for the S2E, S2I, and S2L valves are where load holding in both directions is required.

  Code LPM BAR Size Datasheet .STP .DXF
2 Way 2 Position Normally Closed Bi-Directional Solenoid Cartridge Valve D-UAS2E 0.76 275 07
2 Way N.C.
Bi-Dir. Poppet

2 Way 2 Position Normally Closed Bi-Directional Solenoid Cartridge Valve T-PBS2I 15 250 08
2 Way N.C.
Bi-Dir. Poppet

2 Way 2 Position Normally Closed Bi-Directional Solenoid Cartridge Valve D-DES2I 10 210 10
2 Way N.C.
Bi-Dir. Poppet

2 Way 2 Position Normally Closed Bi-Directional Solenoid Cartridge Valve T-HBS2L 45 350 08
2 Way N.C.
Bi-Dir. Poppet




Warning: The specifications/application data shown in our catalogs and data sheets are intended only as a general guide for the product described (herein). Any specific application should not be undertaken without independent study, evaluation, and testing for suitability.
