2W2P Normally Open Poppet Valves

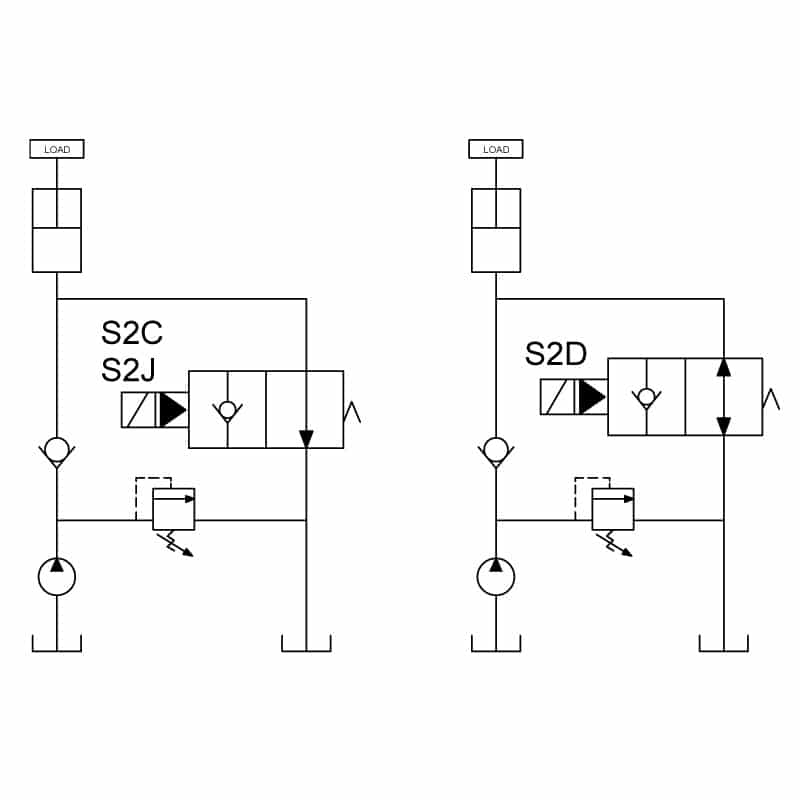

2 Way 2 Position Normally Open Poppet Valve Typical Schematic

Click to enlarge

Typical Schematic

Typical application for the S2C valve is a pump unloading circuit when high flow and low pressure drop is required. Typical application for the S2D valve is for when free flow is required in both directions to float the cylinder. Typical application for the S2J valve is for low pressure applications where the soft seat gives better leakage control.

  Code LPM BAR Size Datasheet .STP .DXF
2 Way 2 Position Normally Open Poppet Valve D-MAS2C 19 210 07
2 Way N.O. Poppet
2 Way 2 Position Normally Open Poppet Valve D-PBS2C 38 240 08
2 Way N.O. Poppet
2 Way 2 Position Normally Open Poppet Valve T-HBS2C 45 350 08
2 Way N.O. Poppet
2 Way 2 Position Normally Open Poppet Valve D-DES2C 55 240 10
2 Way N.O. Poppet
2 Way 2 Position Normally Open Poppet Valve D-TTS2C 115 210 12
2 Way N.O. Poppet
2 Way 2 Position Normally Open Poppet Valve D-SJS2C 150 210 16
2 Way N.O. Poppet
2 Way 2 Position Normally Open Poppet Valve D-HJS2C 150 300 16
2 Way N.O. Poppet
2 Way 2 Position Normally Open Poppet Valve D-PBS2D 38 240 08
2 Way N.O. Poppet
2 Way 2 Position Normally Open Poppet Valve T-HBS2D 45 350 08
2 Way N.O. Poppet
2 Way 2 Position Normally Open Poppet Valve D-DES2D 55 240 16
2 Way N.O. Poppet
2 Way 2 Position Normally Open Poppet Valve D-TTS2D 115 210 08
2 Way N.O. Poppet
2 Way 2 Position Normally Open Poppet Valve D-SJS2D 150 210 08
2 Way N.O. Poppet
2 Way 2 Position Normally Open Poppet Valve D-PBS2J 30 138 08
2 Way N.O. Poppet



Warning: The specifications/application data shown in our catalogs and data sheets are intended only as a general guide for the product described (herein). Any specific application should not be undertaken without independent study, evaluation, and testing for suitability.
