2W2P Normally Open Spool Valves

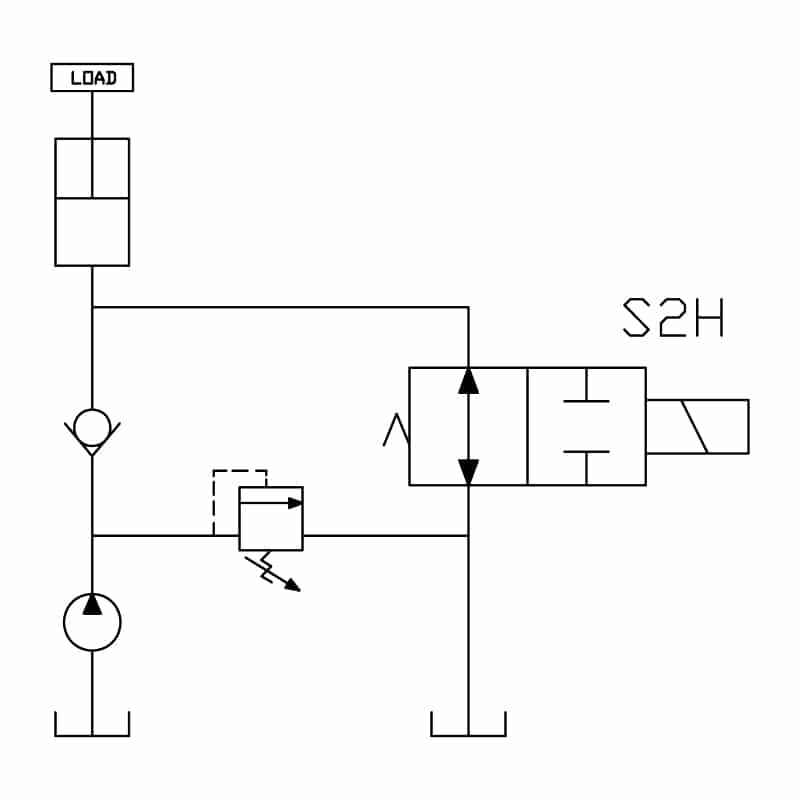

Typical application for the S2H is a pump unloading valve.



 CodeLPMBARSizeDatasheet.STP.DXF
2 Way 2 Position Normally Open Spool ValveD-UAS2H1127507
2 Way N.O. Spool
2 Way 2 Position Normally Open Spool ValveD-HAS2H1127507
2 Way N.O. Spool
2 Way 2 Position Normally Open Spool ValveD-PBS2H2021008
2 Way N.O. Spool
2 Way 2 Position Normally Open Spool ValveD-DES2H3021010
2 Way N.O. Spool
2 Way 2 Position Normally Open Spool ValveD-HES2H3027510
2 Way N.O. Spool
