4W2P Spool Valves

4 Way 2 Position Spool Valves Typical Schematic

Click to enlarge

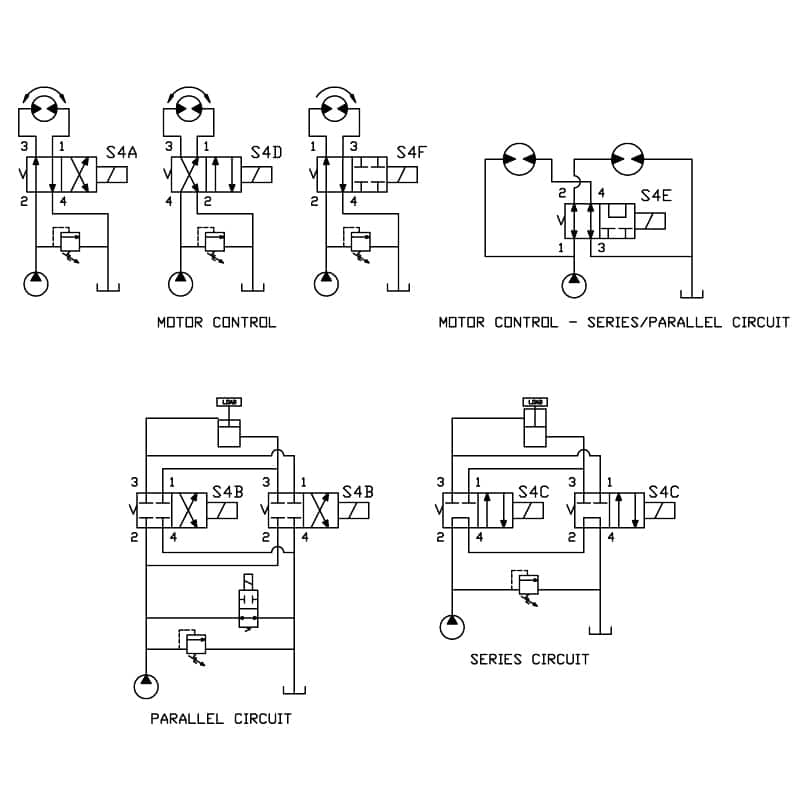

Typical Schematic

Typical application for the S4A, S4D, and S4F valves are directional motor or cylinder control. Typical application for the S4B valve is directional motor or cylinder control in a parallel circuit. Typical application for the S4C valve is directional motor or cylinder control in a series circuit. Typical application for the S4E valve is motor control in a series/parallel circuit.

  Code LPM BAR Size Datasheet .STP .DXF
4 Way 2 Position Spool Valve D-UDS4A 4 275 07
4 Way 2 pos.
Spool

4 Way 2 Position Spool Valve D-HDS4A 6 275 07
4 Way 2 pos.
Spool

4 Way 2 Position Spool Valve D-PQS4A 15 210 08
4 Way 2 pos.
Spool

4 Way 2 Position Spool Valve D-DGS4A 38 210 10
4 Way 2 pos.
Spool

4 Way 2 Position Spool Valve D-HGS4A 38 275 10
4 Way 2 pos.
Spool

4 Way 2 Position Spool Valve D-HVS4A 57 345 12
4 Way 2 pos.
Spool

4 Way 2 Position Spool Valve D-UDS4B 6 275 07
4 Way 2 pos.
Spool

4 Way 2 Position Spool Valve D-HDS4B 11 275 07
4 Way 2 pos.
Spool

4 Way 2 Position Spool Valve D-PQS4B 15 210 08
4 Way 2 pos.
Spool

4 Way 2 Position Spool Valve D-DGS4B 38 210 10
4 Way 2 pos.
Spool

4 Way 2 Position Spool Valve D-HGS4B 38 275 10
4 Way 2 pos.
Spool

4 Way 2 Position Spool Valve D-PQS4C 15 210 08
4 Way 2 pos.
Spool

4 Way 2 Position Spool Valve D-DGS4C 30 210 10
4 Way 2 pos.
Spool

4 Way 2 Position Spool Valve D-HGS4C 30 275 10
4 Way 2 pos.
Spool

4 Way 2 Position Spool Valve D-PQS4D 9 210 08
4 Way 2 pos.
Spool

4 Way 2 Position Spool Valve D-DGS4D 23 210 10
4 Way 2 pos.
Spool

4 Way 2 Position Spool Valve D-HGS4D 30 275 10
4 Way 2 pos.
Spool

4 Way 2 Position Spool Valve D-DGS4E 23 210 10
4 Way 2 pos.
Spool

4 Way 2 Position Spool Valve D-HGS4E 30 275 10
4 Way 2 pos.
Spool

4 Way 2 Position Spool Valve D-HVS4E 57 345 12
4 Way 2 pos.
Spool

4 Way 2 Position Spool Valve D-DGS4F 23 210 10
4 Way 2 pos.
Spool

4 Way 2 Position Spool Valve D-HGS4F 23 275 10
4 Way 2 pos.
Spool




Warning: The specifications/application data shown in our catalogs and data sheets are intended only as a general guide for the product described (herein). Any specific application should not be undertaken without independent study, evaluation, and testing for suitability.
