4W3P Spool Valves

4 Way 3 Position Spool Valve Typical Schematic

Click to enlarge

Typical Schematic

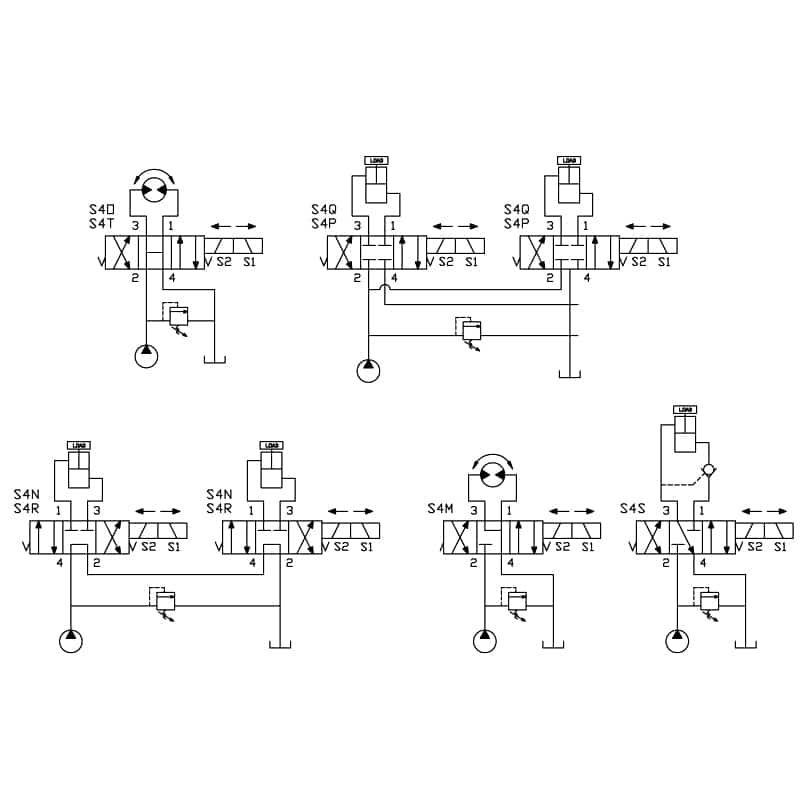

Typical application for the S4O and S4T “Open Center” valve is a bi-directional fluid motor control with coasting. Typical application for the S4Q and S4P “Closed Center” valve is a parallel circuit for cylinder control. Typical application for the S4N and S4R “Tandem Center” valve is a series circuit with power beyond. Typical application for the S4M “Figure Four” valve is coasting in a fluid motor control circuit. Typical application for the S4S “Scotch Center” valve is to vent the pilot side of load holding application.

  Code LPM BAR Size Datasheet .STP .DXF
4 Way 3 Position Spool Valve D-VQS4M 11 210 08
4 Way 3 Pos. Spool
Low Profile

4 Way 3 Position Spool Valve D-PQS4M 23 210 08
4 Way 3 Pos. Spool
4 Way 3 Position Spool Valve D-DGS4M 23 210 10
4 Way 3 Pos. Spool
4 Way 3 Position Spool Valve D-VQS4R 9 210 08
4 Way 3 Pos. Spool
Low Profile

4 Way 3 Position Spool Valve D-PQS4R 11 210 08
4 Way 3 Pos. Spool
4 Way 3 Position Spool Valve D-PQS4N 19 210 08
4 Way 3 Pos. Spool
4 Way 3 Position Spool Valve D-DGS4N 23 210 10
4 Way 3 Pos. Spool
4 Way 3 Position Spool Valve D-PQS4O 11 210 08
4 Way 3 Pos. Spool
4 Way 3 Position Spool Valve D-PQS4T 23 210 08
4 Way 3 Pos. Spool
4 Way 3 Position Spool Valve D-DGS4O 30 210 10
4 Way 3 Pos. Spool
4 Way 3 Position Spool Valve D-VQS4Q 13 210 08
4 Way 3 Pos. Spool
Low Profile

4 Way 3 Position Spool Valve D-PQS4Q 23 210 08
4 Way 3 Pos. Spool
4 Way 3 Position Spool Valve D-PQS4P 30 210 08
4 Way 3 Pos. Spool
4 Way 3 Position Spool Valve D-DGS4P 30 210 10
4 Way 3 Pos. Spool
4 Way 3 Position Spool Valve D-DGS4S 23 210 10
4 Way 3 Pos. Spool
