Motorised Valves

Motorised Valves

Click to enlarge

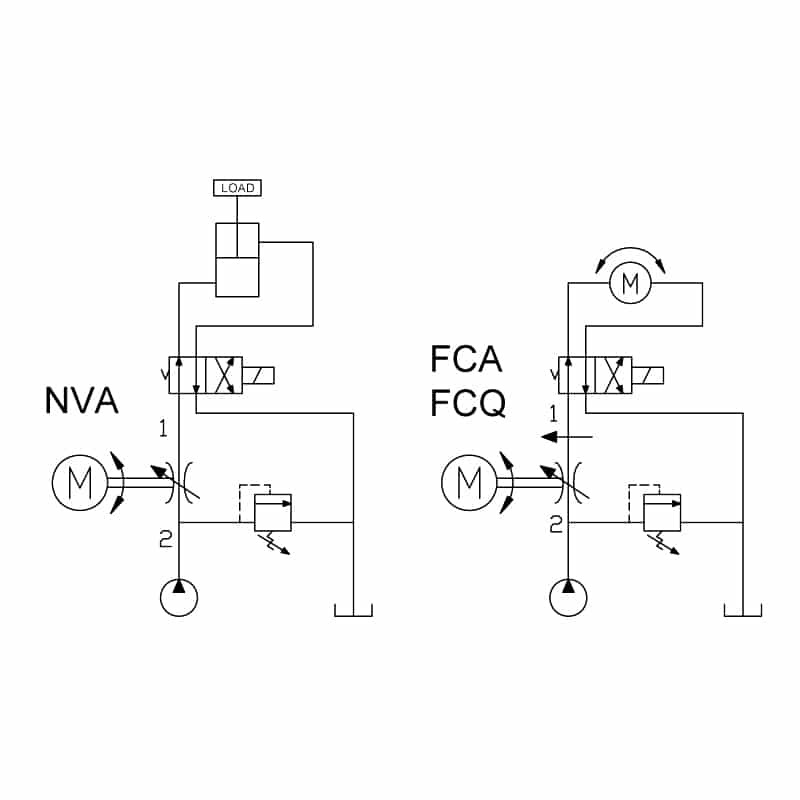

Typical Schematic

Typical application for the NVA valve is to adjust metered flow to control speed or full bypass of a fluid motor or cylinder. Typical application for the FCA and FCQ valves is to adjust pressure compensated flow to control speed of a fluid motor or cylinder.

  Code LPM BAR Size Datasheet .STP .DXF
Motorised Needle Flow Control Valve D-AENVA 45 245 10
Motor. Needle
Flow Control
Motorised Adjustable Pressure Compensated Flow Control D-AJFCA 90 275 16
Motor. Adj.
Pressure Comp.
Flow Control
Motorised Adjustable Priority Flow Control Valve D-AKFCQ 90 245 16
Motor. Adj.
Priority Flow
Control



Warning: The specifications/application data shown in our catalogs and data sheets are intended only as a general guide for the product described (herein). Any specific application should not be undertaken without independent study, evaluation, and testing for suitability.
