Velocity Fuses

Velocity Fuses

Click to enalrge

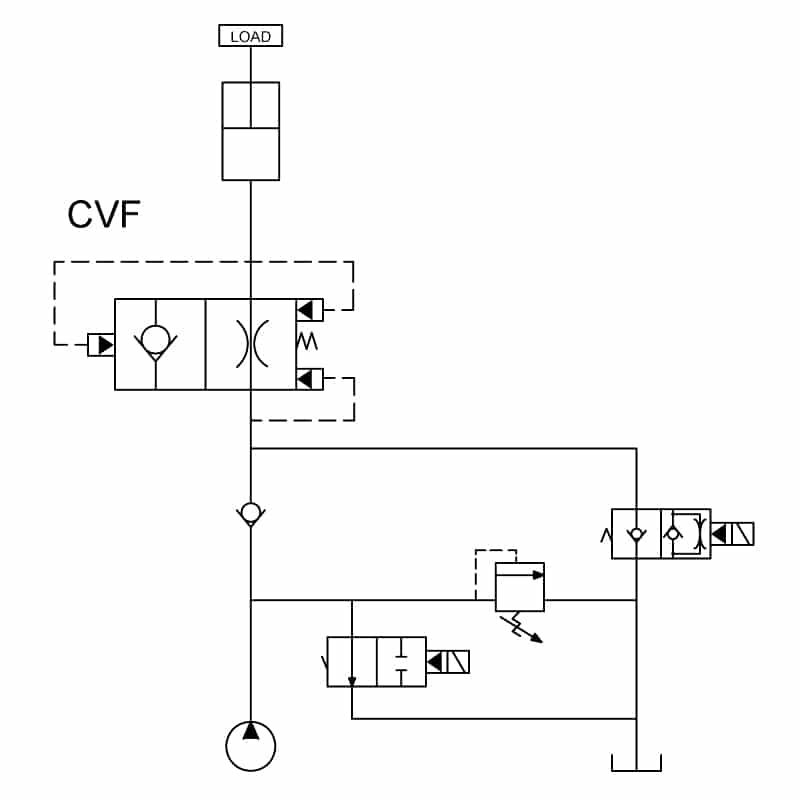

Typical Schematic

Typical application for the CVF valve is to be mounted directly in the bottom of the cylinder and sized 3.8 -7.6 LPM higher than the lowering speed. Therefore the load will not free fall in the event of line damage. Valve will not re-open until pressure is bled off of port #1.

  Code LPM BAR Size Datasheet .STP .DXF
Velocity Fuses D-DECVF 38 240 10
Velocity Fuse



Warning: The specifications/application data shown in our catalogs and data sheets are intended only as a general guide for the product described (herein). Any specific application should not be undertaken without independent study, evaluation, and testing for suitability.
