3W2P Spool Valves

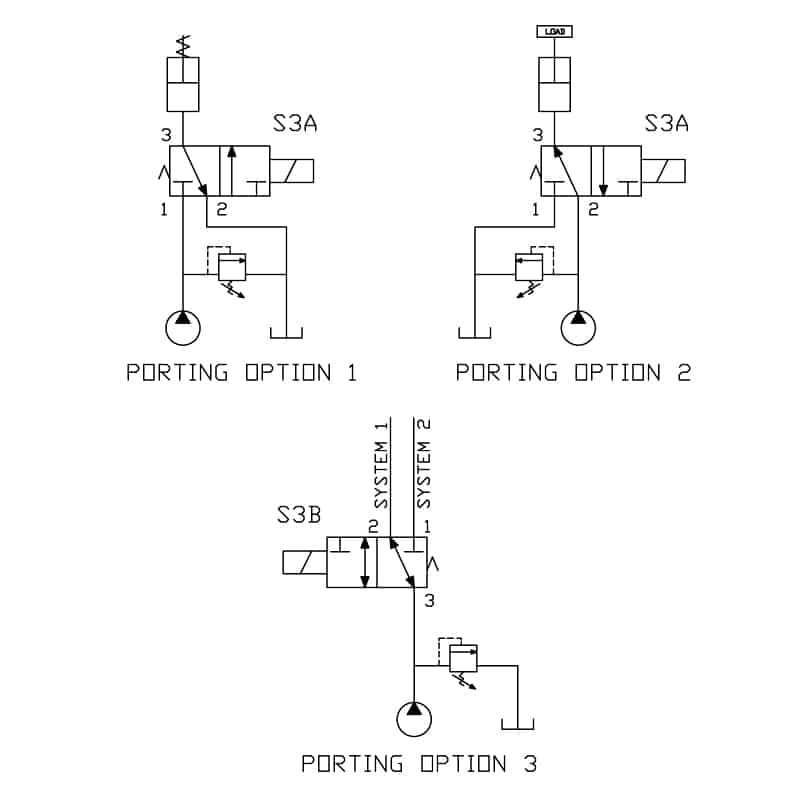

Typical application for porting option 1 is to operate a spring loaded hydraulic clutch. Typical application for porting option 2 is single acting cylinder control in a gravity lower circuit. Typical application for porting option 3 is a selector valve for two different systems or functions.

 CodeLPMBARSizeDatasheet.STP.DXF
3 Way 2 Position Spool Valve D-UCS3A7.627507
3 Way Spool
3 Way 2 Position Spool Valve D-HCS3A827507
3 Way Spool
3 Way 2 Position Spool Valve D-PPS3A1121008
3 Way Spool
3 Way 2 Position Spool Valve D-DFS3A3821010
3 Way Spool
3 Way 2 Position Spool Valve D-HFS3A3827610
3 Way Spool
3 Way 2 Position Spool Valve D-PPS3B1021008
3 Way Spool
3 Way 2 Position Spool Valve D-DFS3B3021010
3 Way Spool
3 Way 2 Position Spool Valve D-HFS3B3027510
3 Way Spool
3 Way 2 Position Spool Valve D-PPS3D1121008
3 Way Spool
3 Way 2 Position Spool ValveD-HUS3E5734512
3 Way Spool
3 Way 2 Position Spool ValveD-HUS3F5734512
3 Way Spool
3 Way 2 Position Spool ValveD-HCS3P1.127507
3 Way Spool
3 Way 2 Position Spool Valve D-UCS3T7.610307
3 Way Spool
3 Way 2 Position Spool Valve D-DFS3T3010310
3 Way Spool
3 Way 2 Position Spool Valve D-PPS3X1121008
3 Way Spool



Warning: The specifications/application data shown in our catalogs and data sheets are intended only as a general guide for the product described (herein). Any specific application should not be undertaken without independent study, evaluation, and testing for suitability.
