Pilot to Shift Valves

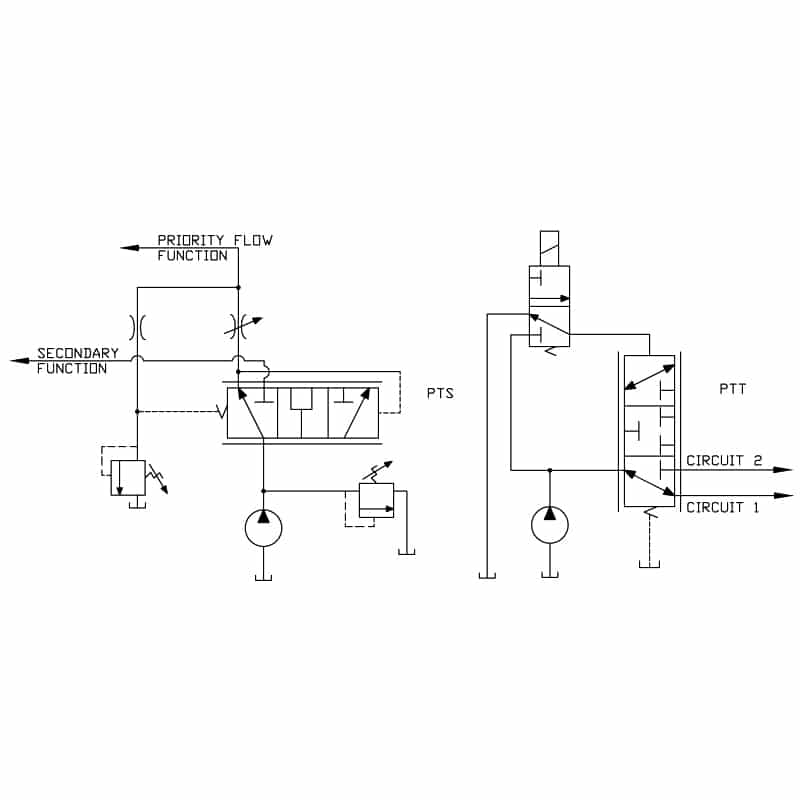

There are many circuits that these valves can be used in, for example, a high flow priority flow control or a high flow selector.

 CodeLPMBARSizeDatasheet.STP.DXF
D-HGPDO3827610
2 Way NO Ext. Pilot & Drain
Symbol-PDC D-HGPDC3827610
2 Way NC Ext. Pilot & Drain
Symbol-PDE D-HFPDE3827610
2 Way NC Ext. Pilot
Symbol-DFPDI D-DFPDI3820710
3 Way Int. Pilot & Drain
Symbol-DGPDI D-DGPDI3820710
3 Way Int. Pilot & Ext. Drain
hydraulic-symbol-pilot-to-shift-valveD-SOPTS15024016
3 Way Pilot to Shift Open Trans.
hydraulic-symbol-pilot-to-shift-valveD-SOPTT15024016
3 Way Pilot to Shift Closed Trans.
D-HGPDA3827610
4 Way NC Pilot Directional
