2W2P Normally Closed Poppet Valves

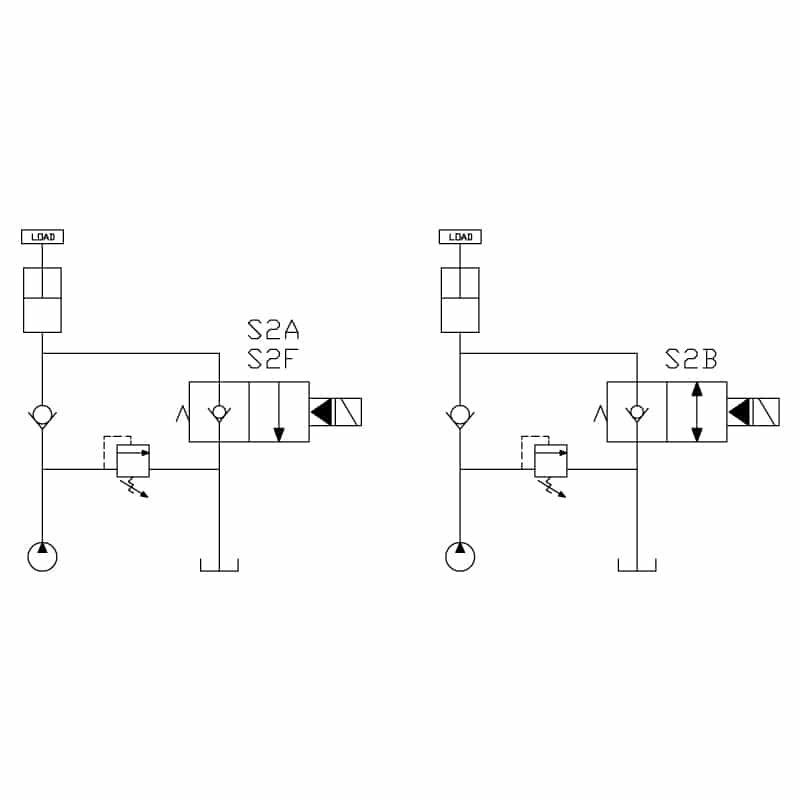

Typical application for the S2A valve is load holding and lowering in a Lift, Check and Dump circuit. Typical application for the S2B valve is load holding and lowering when free flow in both directions is required to float the cylinder. Typical application for the S2F valve is load holding and lowering of a cylinder in low pressure application where the soft seat gives better leakage control.



 CodeLPMBARSizeDatasheet.STP.DXF
D-HAS2P0.3835007
2 Way N.C. Poppet
D-UAS2A2327507
2 Way N.C. Poppet
D-UAS2F1521007
2 Way N.C.
Soft Seat Poppet
D-HAS2A1927507
2 Way N.C. Poppet
D-PBS2A3024008
2 Way N.C. Poppet
D-PBS2F2317208
2 Way N.C.
Soft Seat Poppet
T-HBS2A4535008
2 Way N.C. Poppet
D-DES2A5524010
2 Way N.C. Poppet
D-DES2F386910
2 Way N.C.
Soft Seat Poppet
D-HES2A5527510
2 Way N.C. Poppet
D-TTS2A9521012
2 Way N.C. Poppet
D-SJS2A11524016
2 Way N.C. Poppet
D-HJS2A15030016
2 Way N.C. Poppet
D-PBS2B3024008
2 Way N.C. Poppet
T-HBS2B4535008
2 Way N.C. Poppet
D-DES2B5524010
2 Way N.C. Poppet
D-HES2B5727510
2 Way N.C. Poppet
D-TTS2B9521012
2 Way N.C. Poppet
D-HTS2B13034512
2 Way N.C. Poppet
D-SJS2B15024016
2 Way N.C. Poppet



Note: The specifications/application data shown in our catalogs and data sheets are intended only as a general guide for the product described (herein). Any specific application should not be undertaken without independent study, evaluation, and testing for suitability.
