Pilot operated Check WM

Typical assembly; Double Pilot Operated Check Valve Assemblies are used mainly in circuits where a double acting hydraulic cylinder are required to be locked in a load holding position when the pump flow is off.

Please contact Related Fluid Power for more information.

 CodeLPMBARDatasheet.STP.DXF
RF LC255719240

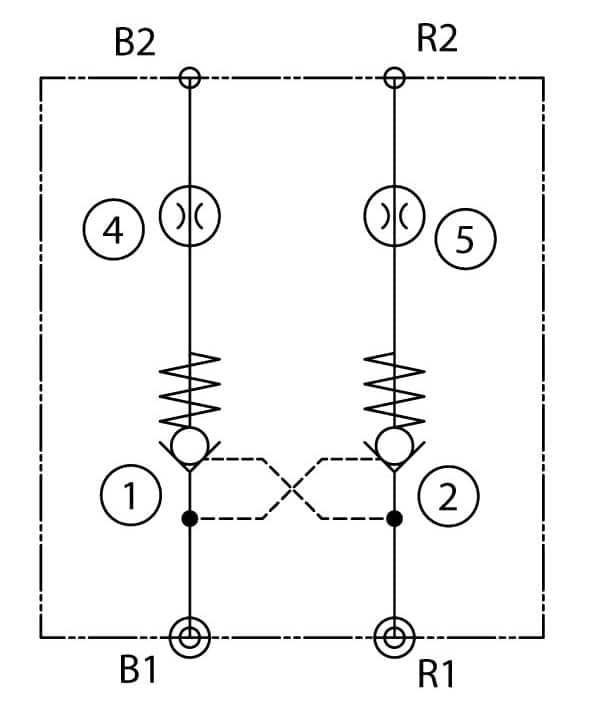

Dual Pilot Operated Check Valve.
Weld On



Warning: The specifications/application data shown in our catalogues and data sheets are intended only as a general guide for the product described (herein). Any specific application should not be undertaken without independent study, evaluation, and testing for suitability.
