Overcentre LM

Typical assembly; A line mounted dual pilot operated check valve / dual over centre valve or mix. Using two separate cartridges from a selection of pilot operated check or overcentre this valve assembly is a compact and economical solution for applications that require minimal use of connections, elbow and pipes.

Please contact Related Fluid Power for more information.

 CodeLPMBARDatasheet.STP.DXF
RF LC505060350

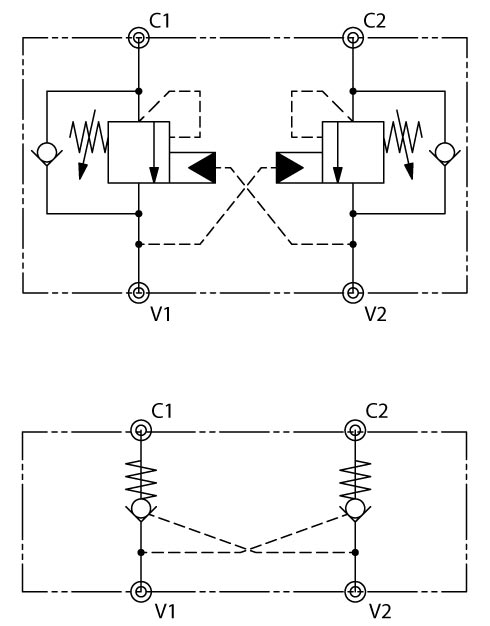

Dual Pilot Operated Check / Dual Overcentre



Warning: The specifications/application data shown in our catalogues and data sheets are intended only as a general guide for the product described (herein). Any specific application should not be undertaken without independent study, evaluation, and testing for suitability.
