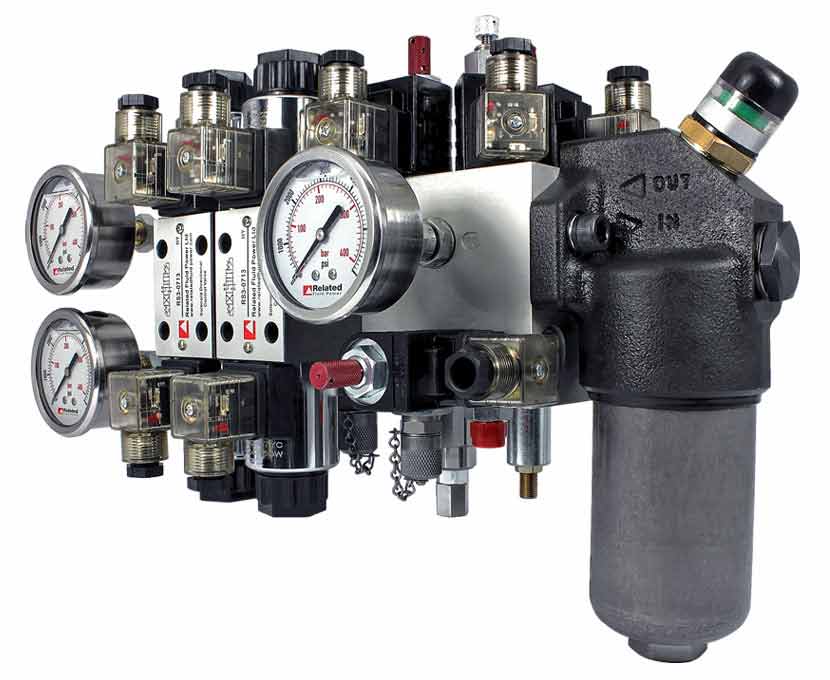

Custom hydraulic manifold system

The combination of extensive application experience, innovative design and flexible manufacturing allow us to offer custom hydraulic manifold systems that meet our customers’ demands.

Product Scope & Control Options

• Controls selected from large range of cartridge and sub-plate mounted valves
• Manual, mechanical, pilot operated, electro-hydraulic, proportional
• Directional, pressure, flow, load-holding controls
• Typical Flows rates: to 600 lpm
• Typical Pressures: to 420 bar
• Large choice of voltage and termination options (incl. environmental proofed coils)
• Large choice of port sizes and types
• Manifold materials: High grade aluminium and steel
• Various protective coatings

Benefits of Hydraulic Manifold Systems

• Custom designed total control assembly
• Efficient and energy saving – large flow paths, minimised pressure drops
• Compact
• Ease of installation and maintenance
• Reduced Leakage
• Aesthetic
• Cost effective
• Simplified ordering

Please contact Related Fluid Power for more information.
