Check with Thermal Relief Valve

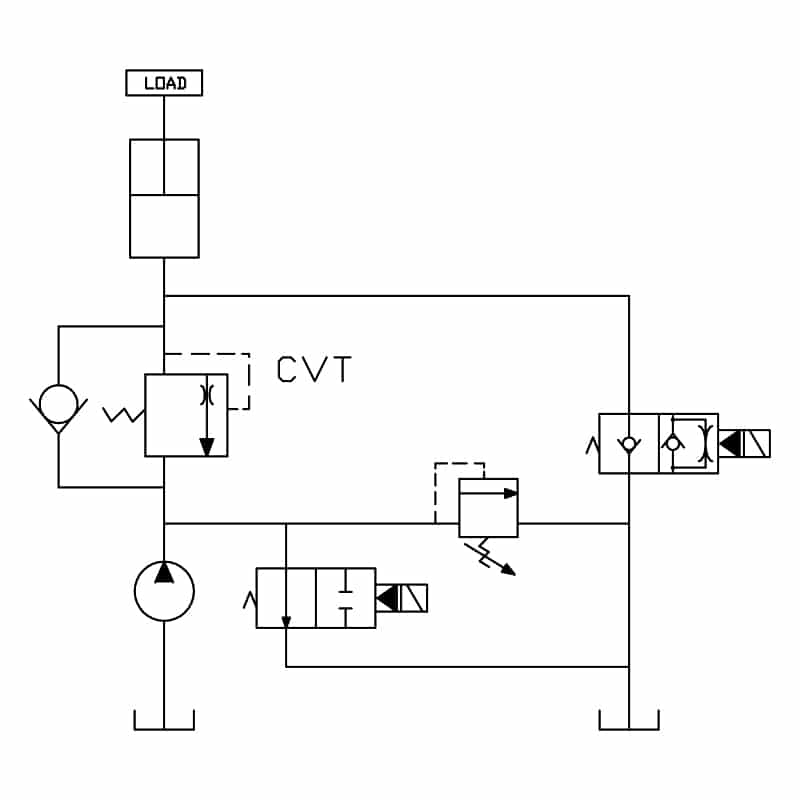

Check with Thermal Relief Valve Typical Schematic

Click to enlarge

Typical Schematic

Typical application for the CVT valve is a relief to protect system from damage due to thermal expansion on load holding circuits.

  Code LPM BAR Size Datasheet .STP .DXF
Check with Thermal Relief Valve D-DECVT 57 276 10
Direct Acting Check
Thermal Relief




Warning: The specifications/application data shown in our catalogs and data sheets are intended only as a general guide for the product described (herein). Any specific application should not be undertaken without independent study, evaluation, and testing for suitability.
