Shuttle Valve

Typical Schematic

Click to enlarge

Typical Schematic

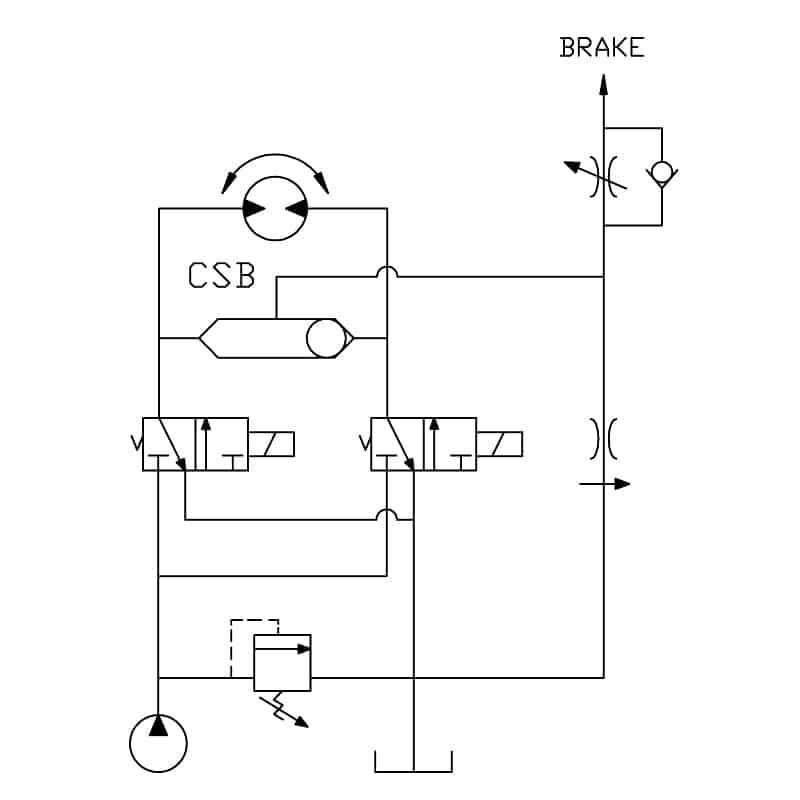

Typical application for the CSB valve is load sense in a motor circuit with a spring loaded brake.

  Code LPM BAR Size Datasheet .STP .DXF
D-PPCSB 23 240 08
Shuttle Valve
D-DFCSB 30 240 10
Shuttle Valve
