Rotary Valve

Hydraulic Valve Rotary Valve Typical Schematic

Click to enlarge

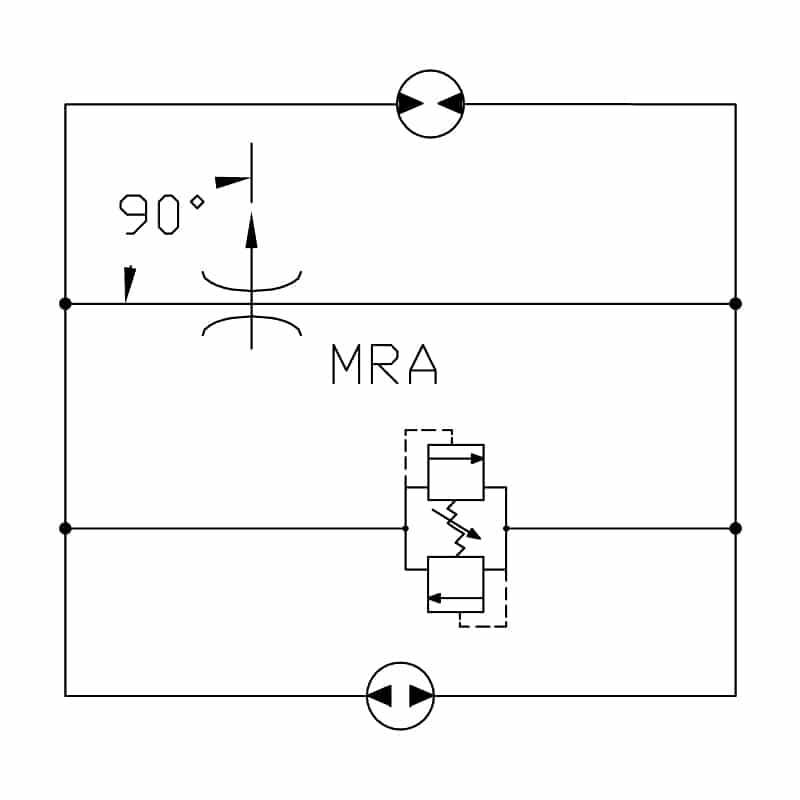

Typical Schematic

Typical application for the MRA rotary valve is an emergency by-pass flow in a closed loop system.

  Code LPM BAR Size Datasheet .STP .DXF
2 Way Manual Rotary Spool Valve R-SJMRA 150 210 16
2 Way Manual
Rotary Spool




Warning: The specifications/application data shown in our catalogs and data sheets are intended only as a general guide for the product described (herein). Any specific application should not be undertaken without independent study, evaluation, and testing for suitability
