Proportional Relief Valves

Proportional Relief Valve

Click to enlarge

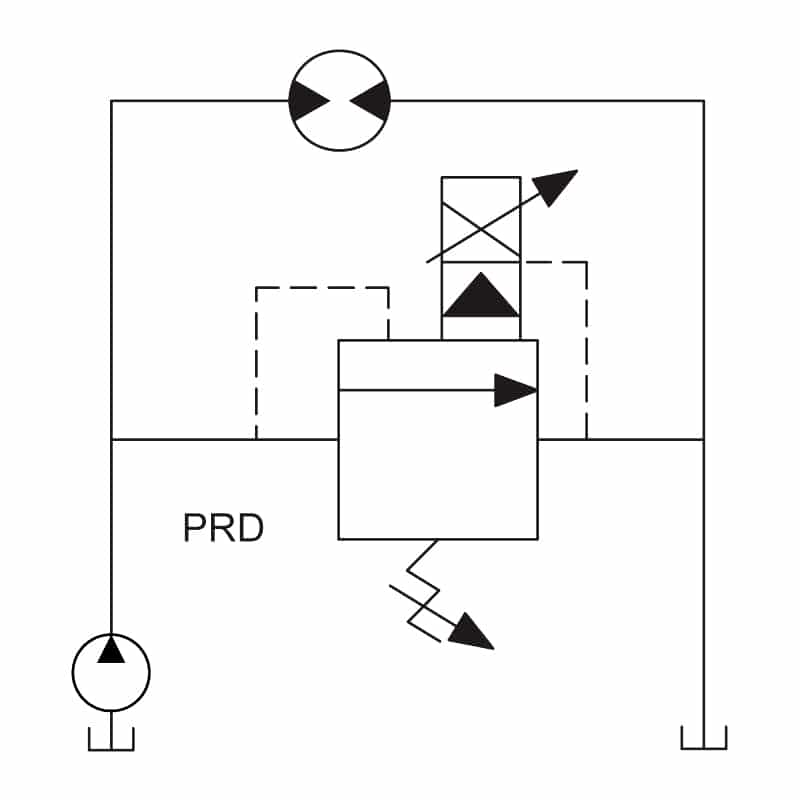

Typical Schematic

Typical application for the PRD proportional relief valve is for fan or motor speed control.

  Code LPM BAR Size Datasheet .STP .DXF
2 Way, Normally Open, Proportional Relief Valve D-EEPRD 45 210 10
2 Way, N.O.



Warning: The specifications/application data shown in our catalogs and data sheets are intended only as a general guide for the product described (herein). Any specific application should not be undertaken without independent study, evaluation, and testing for suitability.
