Logic Element Valves

Logic Element Valves

Click to enlarge

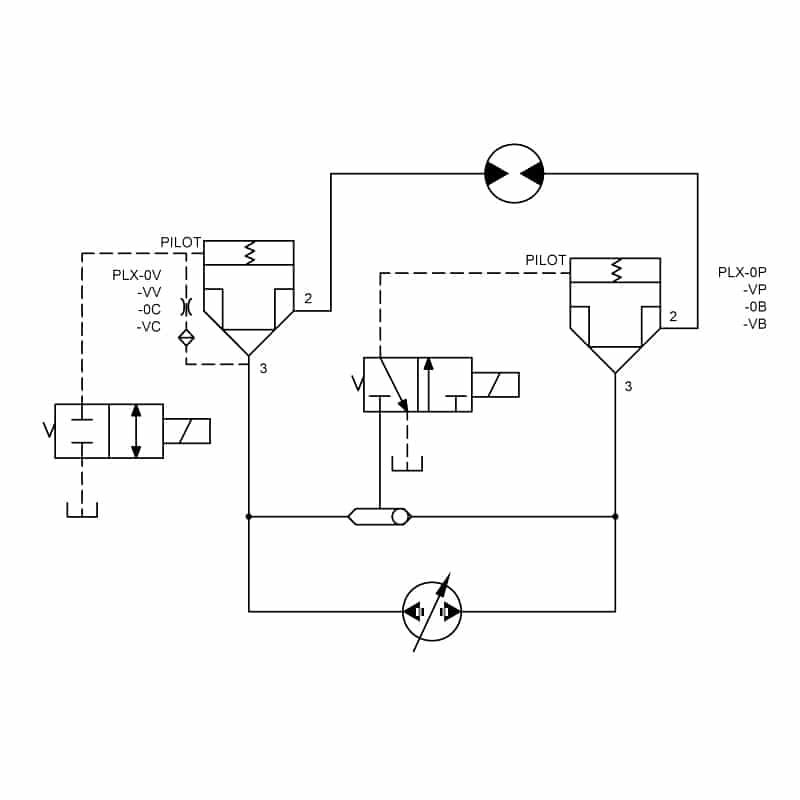

Typical Schematic

Typical application for the PLA, PLB, and PLC valves is on a circuit as bi-directional pilot operated 2 way valve with either vent to open or pilot to close from an external source.

  Code LPM BAR Size Datasheet .STP .DXF
Logic Valve, Seat Ratio 1:1.2 D-SLPLA 150 240 16
Logic Valve
Seat Ratio 1:1.2

Logic Valve, Seat Ratio 1:1.5 D-SLPLB 150 240 16
Logic Valve
Seat Ratio 1:1.5

Logic Valve, Bidirectional Type, Seat Ratio 1:2 D-SLPLC 150 240 16
Logic Valve
Seat Ratio 1:2
Bi-Dir. Type




Warning: The specifications/application data shown in our catalogs and data sheets are intended only as a general guide for the product described (herein). Any specific application should not be undertaken without independent study, evaluation, and testing for suitability.
